Can't send email from outbound dialplan route

[pbz]

I'm trying to send an email from an outbound dialplan and I have the Advanced->Default Settings->Email setup and verified working.

I'm using the example here (see the screen shot): https://www.pbxforums.com/threads/change-outbound-caller-number.2731/post-7769

In an outbound dialplan I have the tag set to action, the type set to lua and the data set to email.lua to@email.com from@email.com ' ' 'Test Email' 'Test Body'

The position of the dialplan entry is right before the bridge to the gateways.

My actual emails were replaced with to@email.com and from@email.com

When I make an outbound call, the email is never sent, but in the logs I see this error:

e1be75b7-5ba0-4e60-adfc-913605613025 EXECUTE [depth=0] sofia/internal/100@1.1.1.1 lua(email.lua to@email.com from@email.com Test Email Test Body)
e1be75b7-5ba0-4e60-adfc-913605613025 2022-02-22 16:28:28.284341 97.87% [ERR] mod_lua.cpp:202 ...are/freeswitch/scripts/resources/functions/send_mail.lua:240: bad argument #1 to pairs (table expected, got string)

My actual ip address was replaced with 1.1.1.1

I checked send_mail.lua on line 240 and the code is:

for k,v in pairs(headers) do
    xheaders = xheaders .. ('"%s":"%s",'):format(k, v)
end

I'm not sure where to go from here. Any help is appreciated!



[Adrian Fretwell]

Just looking at the example at the bottom of the send_mail.lua file, it looks like the first argument needs to be headers not to@email.com...

--local headers = {
--    ["X-FusionPBX-Domain-UUID"] = '2d171c4c-b237-49ca-9d76-9cffc1618fa7';
--    ["X-FusionPBX-Domain-Name"] = 'domain.com';
--    ["X-FusionPBX-Email-Type"]    = 'voicemail';
--}
--send_mail(headers, 'alexey@domain.com', {'hello', 'world'})



[pbz]

I was intending to send "blank" headers which I believe is the blank quote ' ' before the to@email.com



[Adrian Fretwell]

Hmm...

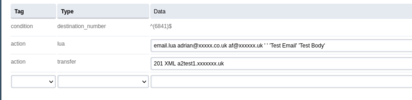

Just tried your setup and it worked OK, screenshot below:



[pbz]

Which version are you using? I'm using 4.5.32 on Debian 11.



[Adrian Fretwell]

Sorry, should have said - I'm rushing a little this evening.

4.5.11 on Debian 10.



[pbz]

I narrowed down the problem and have a workaround.

The issue is the empty string passed in for the header parameter.

None of my attempts to pass in a different value for the parameter worked so I resorted to editing the email.lua file directly.

nano /usr/share/freeswitch/scripts/email.lua

And change

headers = argv[3];

to

headers = {};

Control X, Y, press return to save the change.

This makes the header variable an empty table which will work if you don't need to pass in custom headers.



[hamagid]

That works, thank you.

How can I send a email with new lines?

I tried with \n but I get a error about a unfinished string.
